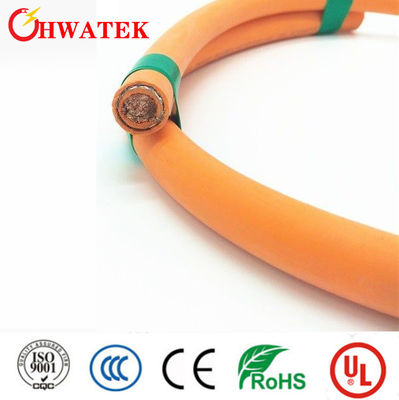

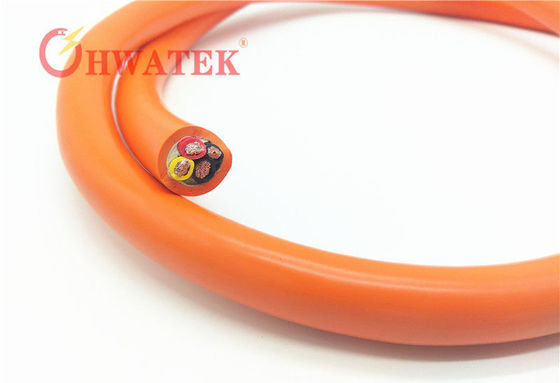

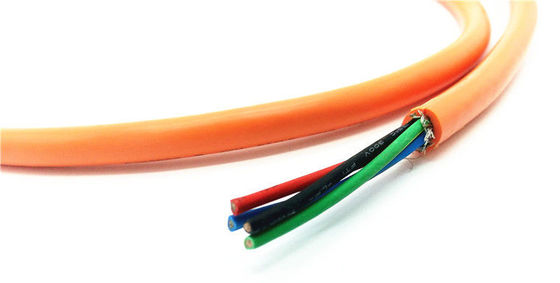

UL Certified EVE EVT EVJE EVJT Electric Vehicle Car Power Charging Cable
Reference Standard
UL62 CSA C22.2 No.49
Product Categories
- EVE / EVT (18AWG-500cmil, >=2 Cores)
- EVJE / EVJT (18AWG-12AWG, 2-6 Cores)
Construction Specifications
- Rated temperature: -40°C to +105°C
- Rated voltage: 300V (EVJE, EVJT) / 600V (EVE, EVT)
- Conductor: Stranded bare or tinned copper
- Insulation material: TPE/PVC
- Sheath material: TPE/PVC
- Features: Cold resistance, abrasion resistance, oil resistance, water resistance, UV resistance
- Passes VW-1 flame test with excellent resistance to flame propagation
Applications
Suitable for all types of electric vehicles, charging piles, power stations, and charging stations.
Structural Parameter Table
| Category |
Wire Specifications |
Reference Current (A) |
Diameter (mm) |
| UL: EVE, EVT 600V |
3×16AWG |
12 |
10.8 |
| 3×14AWG |
16 |
13.4 |
| 3×12AWG |
23 |
14.2 |
| 3×10AWG |
32 |
16.2 |
| 3×16AWG+1×18AWG |
12 |
11.4 |
| 3×14AWG+1×18AWG |
16 |
13.6 |
| 3×12AWG+1×18AWG |
23 |
14.3 |
| 3×10AWG+1×18AWG |
32 |
15.9 |
| 3×8AWG+1×18AWG |
46 |
21.8 |
| 2×8AWG+10AWG+18AWG |
46 |
20.9 |
| 2×6AWG+8AWG+18AWG |
63 |
23.1 |
| 2×4AWG+6AWG+18AWG |
75 |
26.5 |
| 2×2AWG+4AWG+18AWG |
100 |
30.1 |
| 3×16AWG+2×18AWG |
12 |
12.1 |
| UL: EVJE, EVJT 300V |
3×16AWG |
12 |
8.2 |
| 3×14AWG |
16 |
9.0 |
| 3×12AWG |
23 |
10.1 |
| 3×16AWG+1×18AWG |
12 |
8.8 |
| 3×14AWG+1×18AWG |
16 |
9.5 |
| 3×12AWG+1×18AWG |
23 |
11.2 |
| 3×16AWG+2×18AWG |
12 |
9.5 |
| 3×14AWG+2×18AWG |
16 |
12.1 |
| 3×12AWG+2×18AWG |
23 |
13.2 |
1. The detailed dimensions are subject to the product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. The sheath color is generally black or orange, but can be customized upon request.
Company Profile

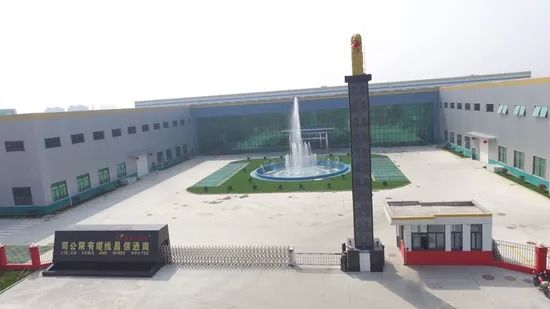

Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters.
In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
Certified with ISO9001, ISO14001, IATF16949, and ISO13485 systems, all products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers through our well-established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we complete orders in 2-3 weeks, and 5-6 weeks during peak season.
Q: How do you guarantee product quality?
A: We provide pre-production samples before mass production and conduct final inspection before shipment.
