Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation

Tutti i prodotti
Cavo flessibile industriale (216)
Cavo flessibile del singolo centro (25)
Cavo flessibile multiconduttore (27)
collegamento cavo (54)
Cavo di carico di EV (52)
Cavi dell'apparecchio medico (19)
Scriva il cavo a macchina di TC-ER (10)
Cavo automobilistico del cavo (15)
Cavo elettrico a spirale (14)
Cavo della trasmissione del segnale (19)
cavo elettrico coassiale (12)
Cavo a catena di resistenza (13)
Cavi del collegamento del computer (11)
Singolo cavo del conduttore (36)
multi cavo del conduttore (38)
Cavo del servomotore (10)
Cavo di energia (16)
Cavo piano elettrico (10)
Migliori prodotti
Centro di carico ignifugo di CA e di CC del cavo di 450/750V EV il multi

Centro di carico ignifugo di CA e di CC del cavo di 450/750V EV il multi

CA in scatola/nudo EV del rame che fa pagare resistente UV della guaina del cavo EV-RS90U TPU

CA in scatola/nudo EV del rame che fa pagare resistente UV della guaina del cavo EV-RS90U TPU

Cavo di carico di EVJE EV per i veicoli elettrici con incagliato conduttore di rame in scatola/nudo

Cavo di carico di EVJE EV per i veicoli elettrici con incagliato conduttore di rame in scatola/nudo

Certificazione
Cina NANTONG HWATEK WIRES AND CABLE CO.,LTD. Certificazioni
Cina NANTONG HWATEK WIRES AND CABLE CO.,LTD. Certificazioni
molte grazie per la vostra risposta rapida. La vostra soluzione professionale del cavo mi aiuta fuori, qualità del cavo è molto buona. Misura i nostri connettori

—— Gonalze

La vostra qualità dei prodotti oltre il mio immagina, altamente apprezzo il vostro grande supporto, la speranza ha migliore e cooperazione più profonda in futuro.

—— Bharath

Sono ora online in chat

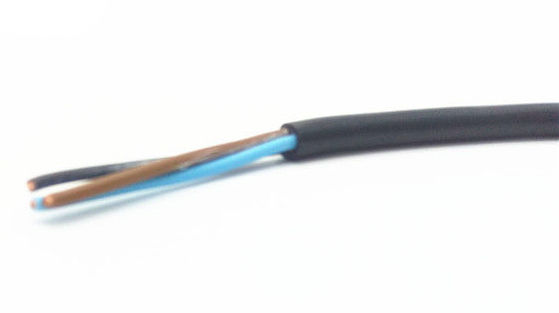

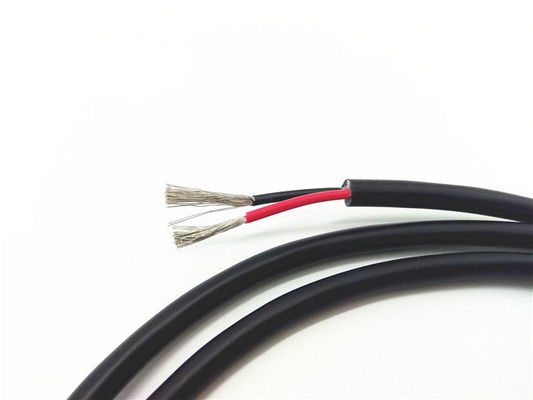

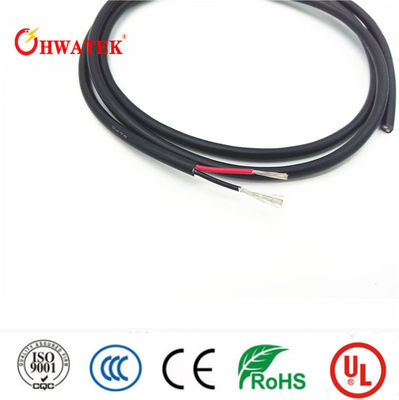

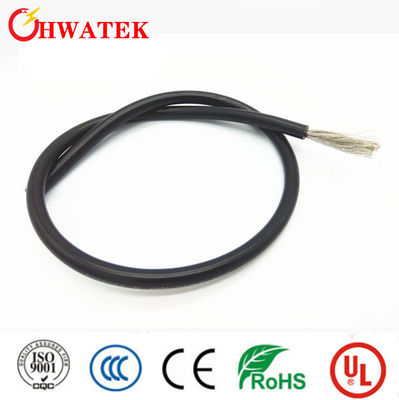

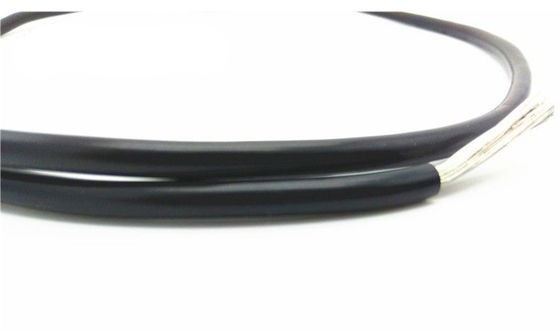

Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation

Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation

Grande immagine :  Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation

Dettagli:
Certificazione: ISO9001, CE, CCC, RoHS
Termini di pagamento e spedizione:
Quantità di ordine minimo: 100 metri
Contatto
Descrizione di prodotto dettagliata
Materiale conduttore: Rame a piastra d'argento Materiale di guaina: Ptfe
Materiale isolante: PFA Forma materiale: Filo rotondo
Dimensione del cavo: 42 AWG Costruzione: 7/0,025 mm
Diametro del filo: 0,075 mm Spessore dell'isolamento: 0.10mm
Diametro isolamento: 0,27 ± 0,05 mm Diametro del montaggio finale: 7.30 mm
Spessore della giacca: 0.60mm Diametro esterno: 9,40 ± 0,30 mm
Temperatura nominale: 60 ° C. Tensione nominale: 30V
Pacchetto di trasporto: 500 m/bobina
Evidenziare:

Silver Plate Copper Medical Device Cable

,

PTFE Sheath Medical Device Cable

,

PFA Insulation Medical Device Cable

Customized 42 AWG and 75 Ohms Medical Device Cables
Product Specifications
  • Conductor: Silver plate copper alloy Jacket
  • Size: 42AWG
  • Construction: 7/0.025mm
  • Strand Dia: 0.075mm
  • Insulation: Foam PFA
  • Nom.Thickness: 0.10mm
  • Insulation Dia: 0.27±0.05mm
  • Insulation colour: Natural
  • Spiral Tinned copper alloy, 0.0254mm, ≥90%
  • Inner jacket Pet tape, ≥25%
  • Colour options: White (A1,A4,A5), Black (A2,A6,A7), Red (A3,A8,A9), Blue (A10,A11,A12)
  • Assembly-A: 16Cx42AWG
  • Final assembly: 12×Assembly-A+Filler
  • Final assembly Dia. nom.: 7.30mm
  • Material: PTFE tape, ≥25%
  • Braid: Tinned copper tinsel, 0.11mm, ≥95%
  • Jacket: PVC
  • Nom.Thickness: 0.60mm
  • Outer Dia.: 9.40±0.30mm
  • Colour: White (standard, customizable)
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 0 Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 1
Technical Specifications
  • Reference standard: NOUL
  • Product Category: NOUL192Cx42AWG(60pF)
  • Rated temperature: 60°C
  • Rated voltage: 30V
  • Conductor: Silver plate copper alloy
  • Insulation material: Foam PFA
  • Sheath material: PVC
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 2
Customization Options
  • Detailed dimensions are subject to product specifications
  • Other specifications can be designed and manufactured according to customer requirements
  • Standard sheath color is black, customizable upon request
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 3 Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 4
Company Profile

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.

In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 5 Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 6
Certifications
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 7
Production Process
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 8
Shipping
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 9
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: We always provide a pre-production sample before mass production and conduct final inspection before shipment.
Major Customers
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 10
