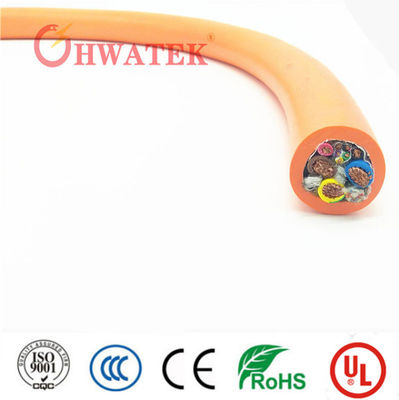

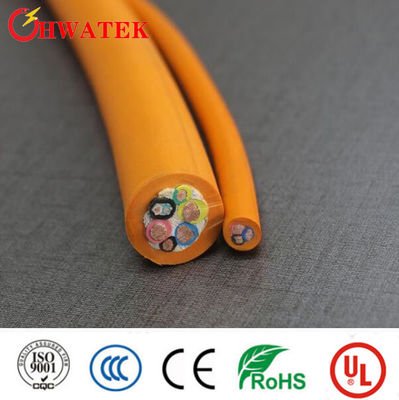

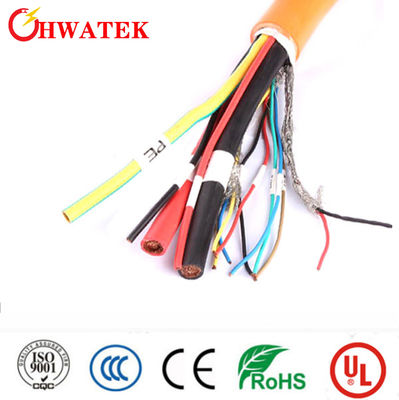

AC Charging Cable/Structure (EV Cable)
Product Description
Application range: Designed for connecting electric vehicle charging equipment to vehicles, including various EVs, charging stations, swap stations, and charging piles.
Application Standards
GB/T33594-2017, GB/T20234-2017 K175-2
Product Features
- Wear resistance
- Oil resistance
- UV resistance
- Cold resistance
- High flame resistance
- Moisture resistance
- High flexibility
Technical Specifications
- Conductor: Type VI stranded bare copper/tinned copper
- Insulation: Rubber synthetic elastomer/TPE
- Sheath: TPE/TPU
- Temperature class: -40~90ºC
- Rated voltage: 450/750V AC
Remark: Similar specifications can be customized according to customer requirements.
Cable Specifications

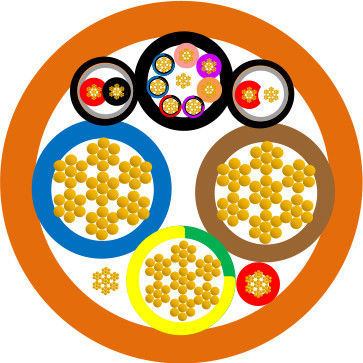

| Cable Construction |
Rated Voltage |
Current (A) |
Color |
| 3x16mm2+2x2.5mm2+1P(2x0.75mm2) |
450/750V |
63A |
Customized |
| 5x16mm2+2x2.5mm2+1P(2x0.75mm2) |
450/750V |
63A |
Customized |
| 5x6mm2+1P(2x0.75mm2) |
450/750V |
32A |
Customized |
| 3x6mm2+1P(2x0.75mm2) |
450/750V |
32A |
Customized |
| 5x2.5mm2+1P(2x0.75mm2) |
450/750V |
16A |
Customized |
| 3x2.5mm2+1P(2x0.75mm2) |
450/750V |
16A |
Customized |
| 5x1.5mm2+1P(2x0.75mm2) |
450/750V |
10A |
Customized |
| 3x1.5mm2+1P(2x0.75mm2) |
450/750V |
10A |
Customized |
Company Profile

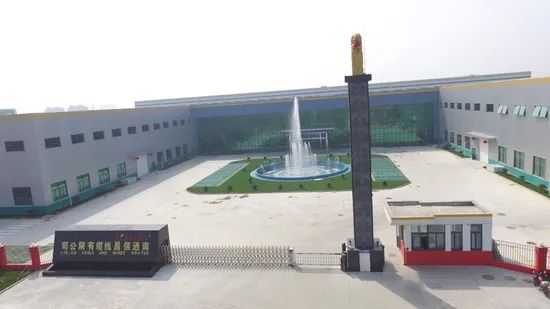

Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.
We are dedicated to R&D and production of various wires and cables including industrial control, communication instruments, medical control, green energy EV, and special wires and cables. OEM & ODM services are available.
Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All our wire and cable products are CCC, UL, CUL, CE, CSA, TUV, DEKRA, IEC, CQC or ETL qualified. With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we serve customers worldwide through our comprehensive sales network.
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we can arrange samples for evaluation.
Q: What's your lead time?
A: Normal lead time is 2-3 weeks, extending to 5-6 weeks during peak season.
Q: How do you guarantee product quality?
A: We conduct pre-production sampling before mass production and final inspection before shipment.
