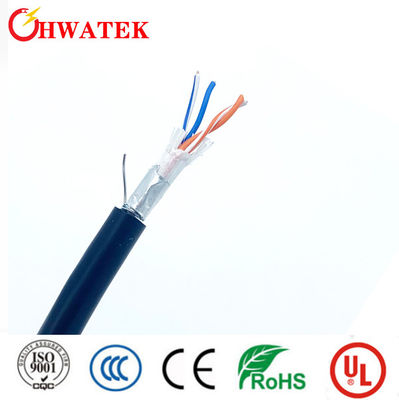

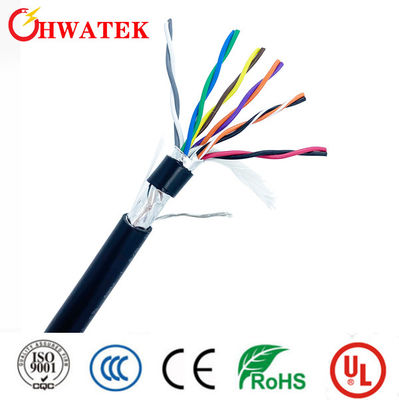

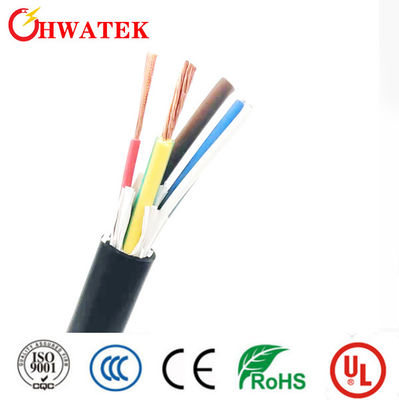

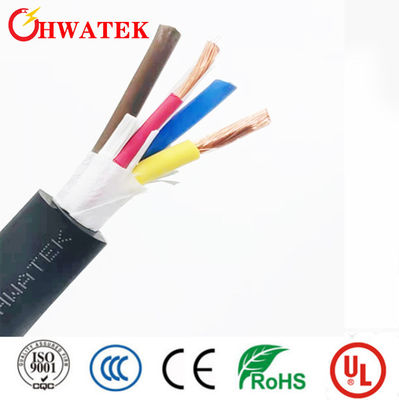

UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 8 cores 18 AWG cable

Basic Properties
Place of Origin: Cina
Brand Name: HWATEK
Certification: UL
Model Number: CL2
Trading Properties
Minimum Order Quantity: 1000
Price: negotiable
Standard Packaging: Bobine o rotoli
Delivery Time: 4 settimane
Payment Terms: T/t
Supply Ability: 1000 km/ mese
Tags

Cavo di controllo flessibile

cavo elettrico flessibile

cavo e fune elettrici industriali
Product Summary
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 8 cores 18 AWG cable Product Specifications Construction Conductor Bare copper starned Cross section 18AWG Construction 16/0.254mm Strand Dia. 1.18mm Insulation SR-PVC Nom.Thickness 0.23mm Min...

Product Details

Rated Voltage: 150 V
Rated Temperature: 75oC
Conductor Material: Di rame nudo incagliato
Conductor Size: 16/0,254 mm
Insulation Material: SR-PVC
Insulation Thickness: 0,23 mm
Min Insulation Thickness: 0,2 mm
Outer Diameter: 10,70±0,10 mm
Jacket Material: PVC
Jacket Thickness: 0.84 mm
Min Jacket Thickness: 0.66 mm
Cable Outer Diameter: 7,6 ± 0,30 mm
Max DC Resistance: 21,4Ω/km
Tensile Strength: ≥10.3MPA
Elongation: ≥100%
Spec: HT2504809
Product Description
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 8 cores 18 AWG cable Product Specifications Construction Conductor Bare copper starned Cross section 18AWG Construction 16/0.254mm Strand Dia. 1.18mm Insulation SR-PVC Nom.Thickness 0.23mm Min.Thickness 0.20mm Insulation Dia. 1.70±0.10mm Insulation colour 1.white 2.red 3.green 4.blue 5.yellow 6.brown 7.orange 8.black Filler optional Assembly 8Cx18AWG Jacket PVC Nom.Thickness 0
